Sensori Pressione | Microsensore

Con oltre 50 anni di esperienza nella progettazione e produzione di sensori di pressione a olio, MicroSensor offre un'ampia gamma di sensori di pressione relativa, assoluta e differenziale. I nostri sensori di pressione offrono diversi diametri, da 0,07 bar a 1000 bar (è disponibile il vuoto), materiali come SS316L, titanio, tantalio, Hastelloy C, ecc.
Altezza
6.5mm ( 0 )
10.5mm ( 2 )
11.5mm ( 3 )
12mm ( 1 )
13.5mm ( 2 )
15mm ( 5 )
18mm ( 1 )
26mm ( 1 )
Diametro
≤12.6mm ( 3 )
15mm ( 1 )
19mm ( 14 )
Alimentazione
10V DC (100±2 mV) ( 1 )
≤2.0mA DC ( 19 )
Campo di misura
>35bar ( 13 )
≤35bar ( 19 )
≤1bar ( 18 )
Compensazione della temperatura
-10~80℃ ( 5 )
0~70℃ ( 9 )
0~50℃ ( 10 )
Altri
con la temperatura ( 1 )
anticorrosivo ( 4 )
Affacciato ( 2 )
Esecuzione igienico-sanitaria ( 2 )
Sensore di pressione e temperatura

Sensore di pressione e temperatura

MCM201

Pressure range: 0~0.35bar…1000bar
Gauge, absolute, sealed gauge
Pressure and temperature signal dual output
Temperature error ±0.5℃<br> Φ19mm standard OEM pressure sensor
Long-term stability ± 0.1%FS/year

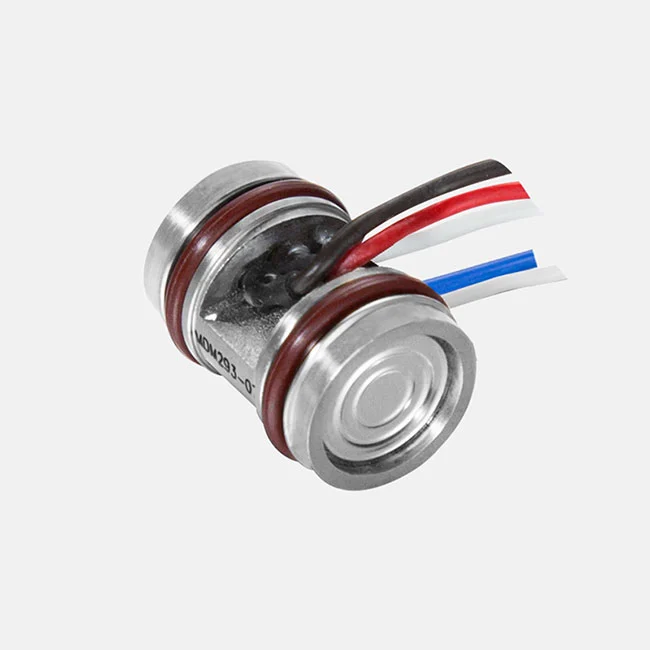

Sensore di pressione differenziale

Sensore di pressione differenziale

MDM293

Range: 0bar~2bar…35bar
200bar static pressure
Small size: φ12.6X18mm
Compensated temperature: 0~70℃

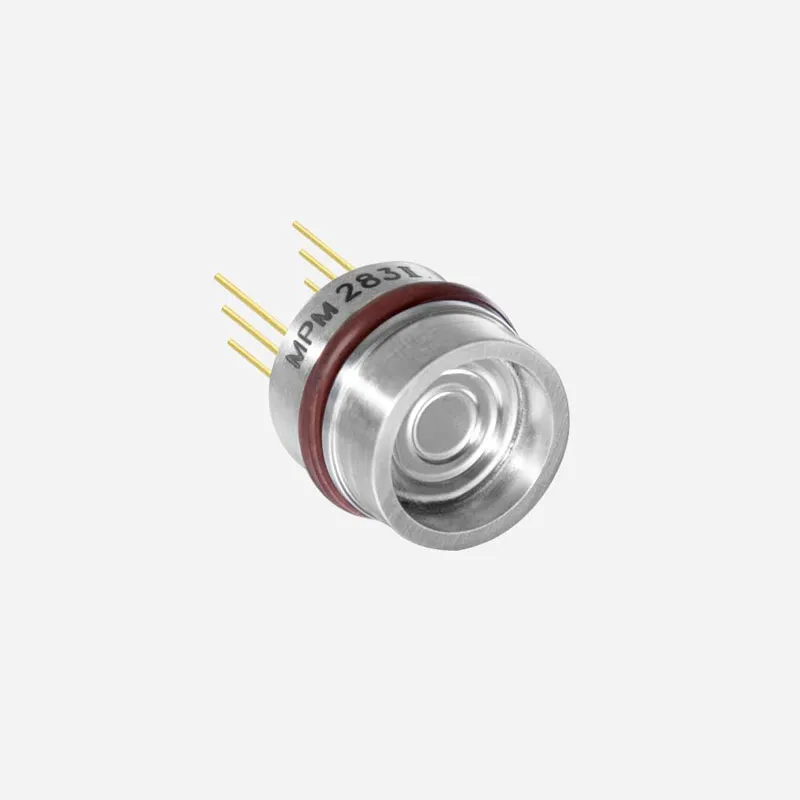

Sensore di pressione ad alta pressione

Sensore di pressione ad alta pressione

MPM283II

Φ12.6x10.5mm
0bar~1bar…1000bar
-10~80℃ Compensated
Wide temperature-compensated pressure sensor MPM283II type is -10℃ ~80℃ wide temperature...
Sensore di pressione piezoresistivo

Sensore di pressione piezoresistivo

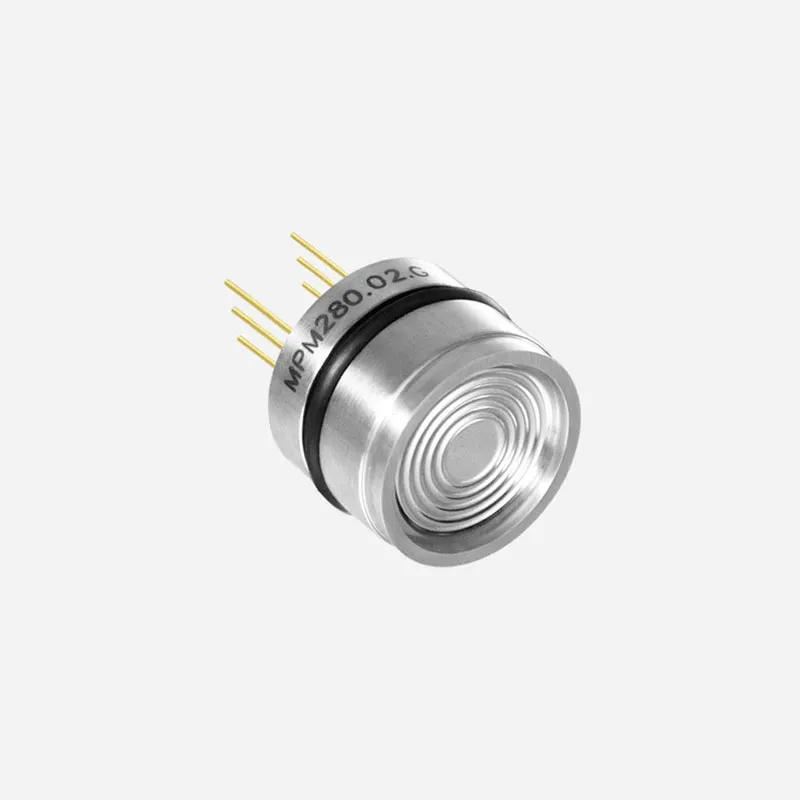

MPM280

Φ19x15mm
0bar~0.2bar…1000bar
General
Piezoresistive pressure sensor MPM280 is a silicon oil-diffused type pressure sensing element...

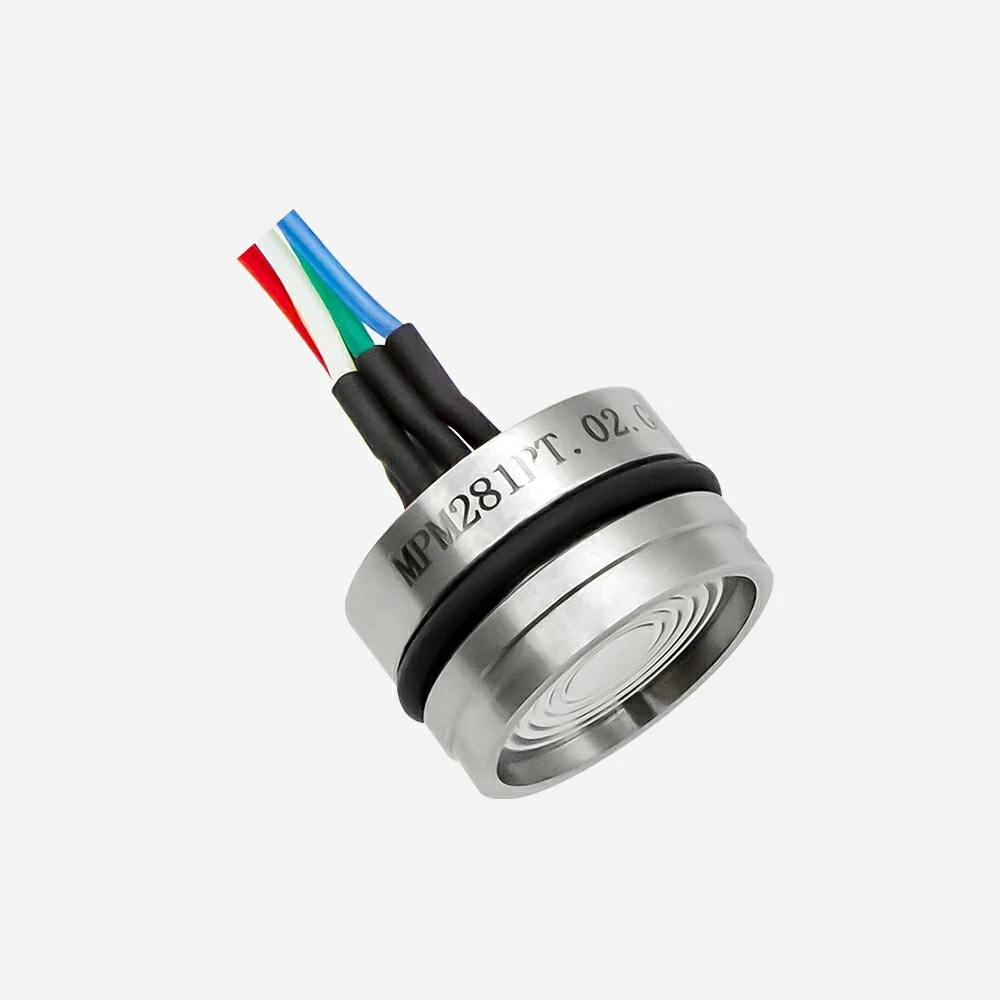

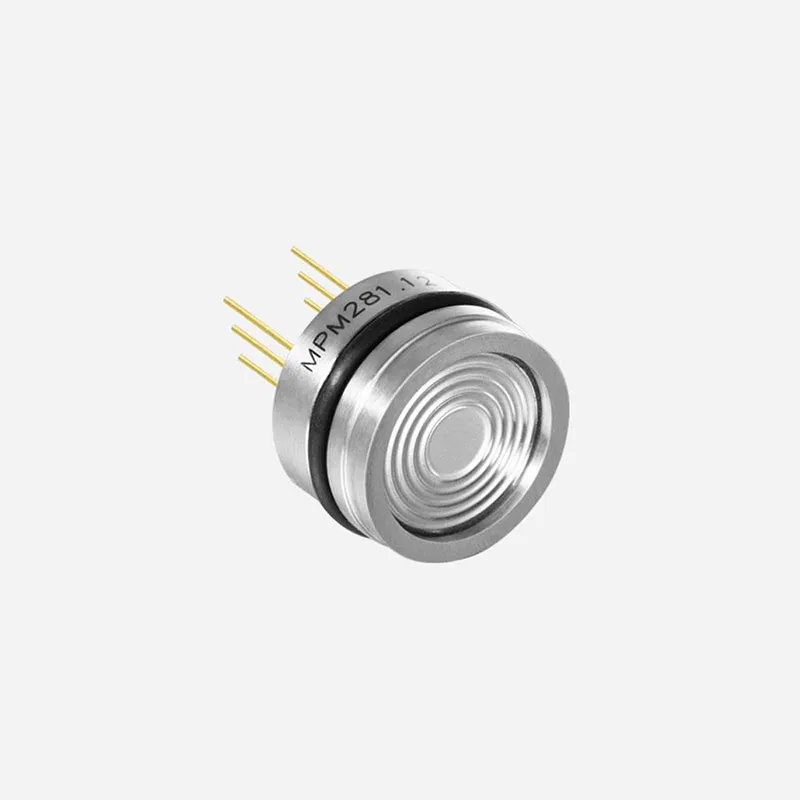

Sensore di pressione ad alta stabilità

Sensore di pressione ad alta stabilità

MPM281

Φ19x11.5mm
0bar~0.07bar…1000bar
-10~80℃ Compensated
High stable pressure sensor MPM281 has a stability error of ±0.1 % FS/year. It outputs an mV singal...

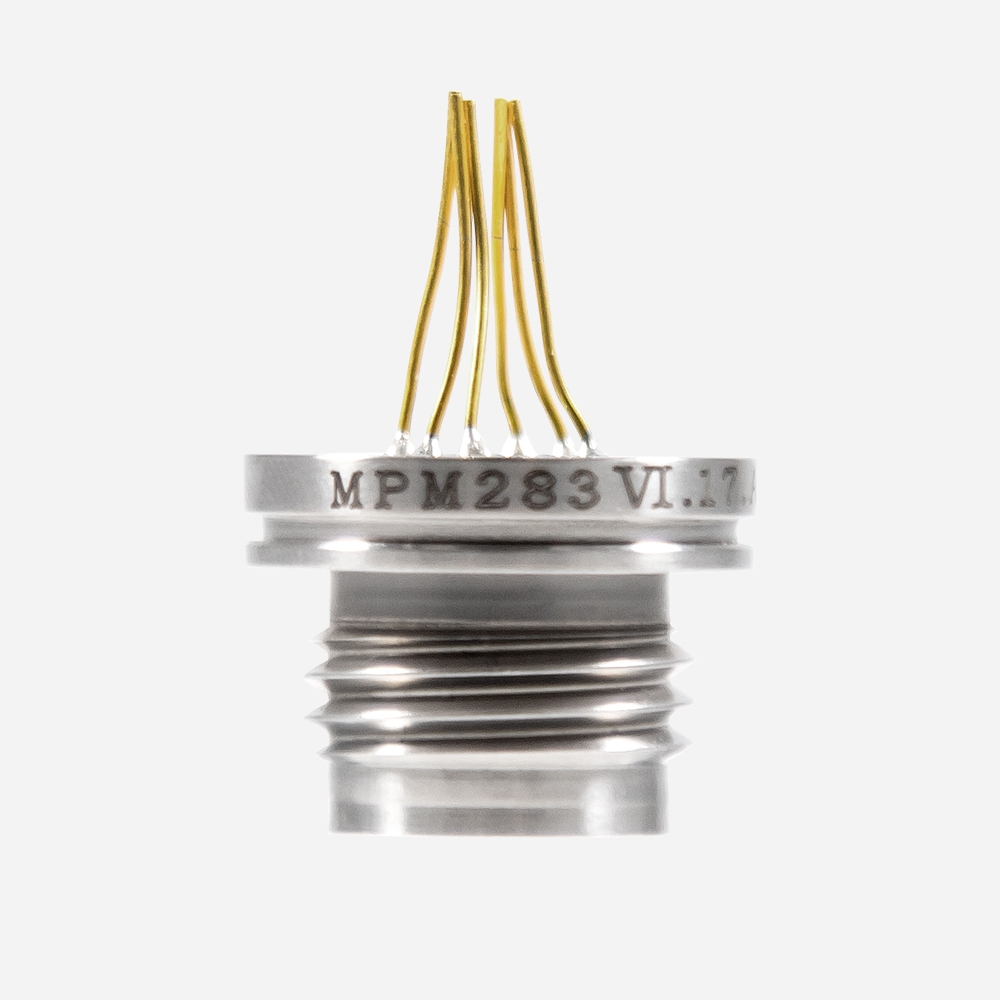

Sensore di pressione di piccole dimensioni

Sensore di pressione di piccole dimensioni

MPM283VI

Φ19×6.5mm
0bar~0.2bar…35bar
0~50℃ Compensated Temp.
Small size pressure sensor MPM286 is with Φ 19×6.5 mm outline construction...
Sensore di pressione piezoresistivo

Sensore di pressione piezoresistivo

MPM281VC

Φ19x11.5mm
0bar~0.35bar…1000bar
Constant Voltage Supply
Piezoresistive pressure sensor MPM281VC is a constant voltage supply. The pressure sensor has...

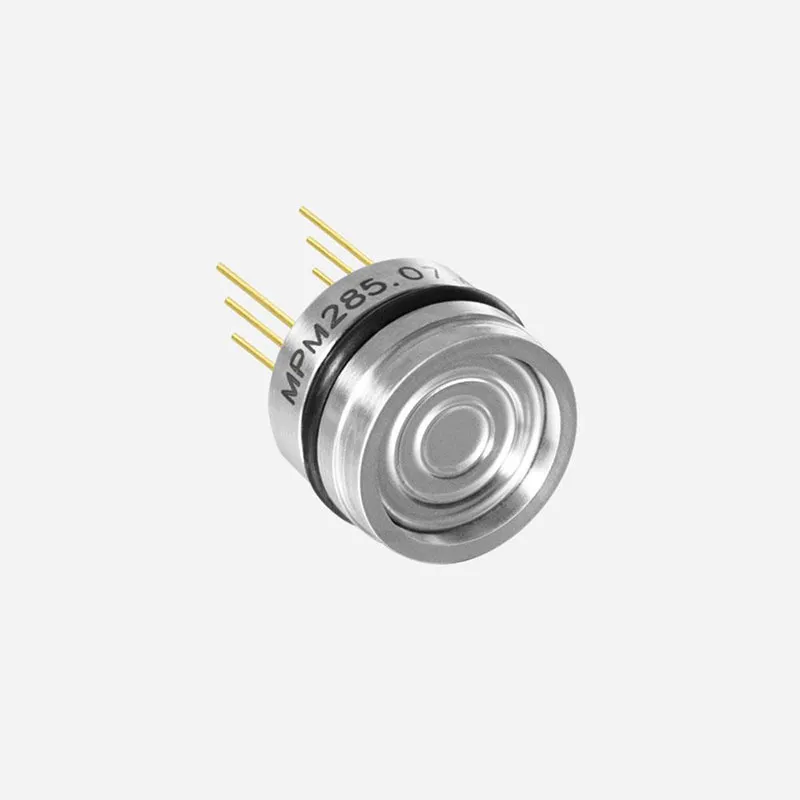

Sensore di pressione a olio

Sensore di pressione a olio

MPM285

Φ15×10.5mm
0bar~1bar...35bar
0~70℃ Compensated Temp.
Oil-filled pressure sensor MPM285 utilizes silicon die with very stable performance.

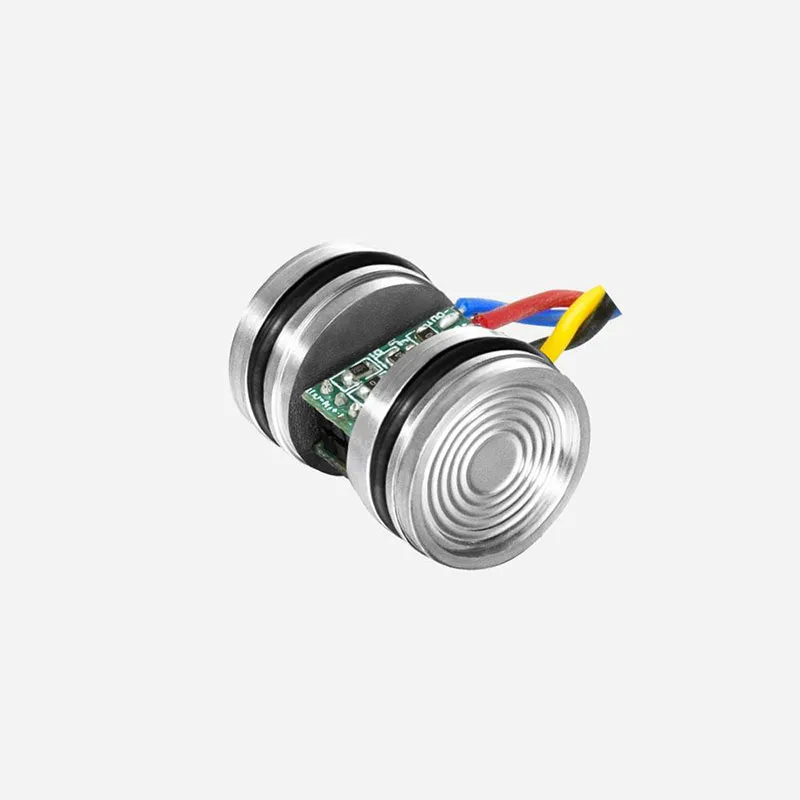

Sensore di pressione differenziale

Sensore di pressione differenziale

MDM290

Φ19x26mm
Outer Resistors Temperature Compensated
Laser Trimmed Thick-film Circuit Board
Differential pressure sensor MDM290 is temperature compensated with Outer Resistors and has a laser-trimmed thick-film circuit board.

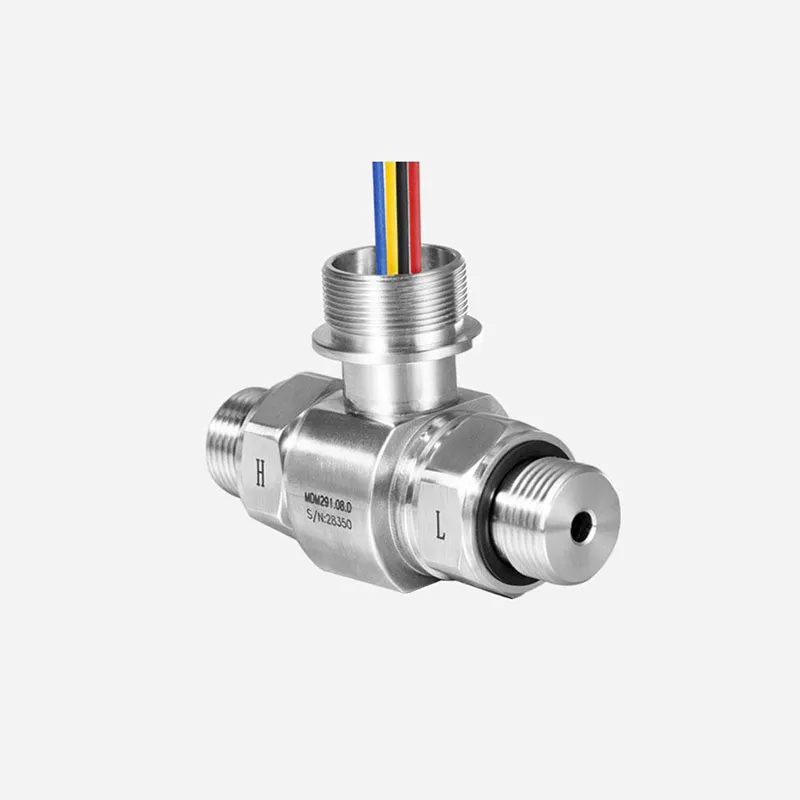

Sensore di pressione differenziale dell'acqua

Sensore di pressione differenziale dell'acqua

MDM291

0bar~0.35bar…20bar
Fully Welded

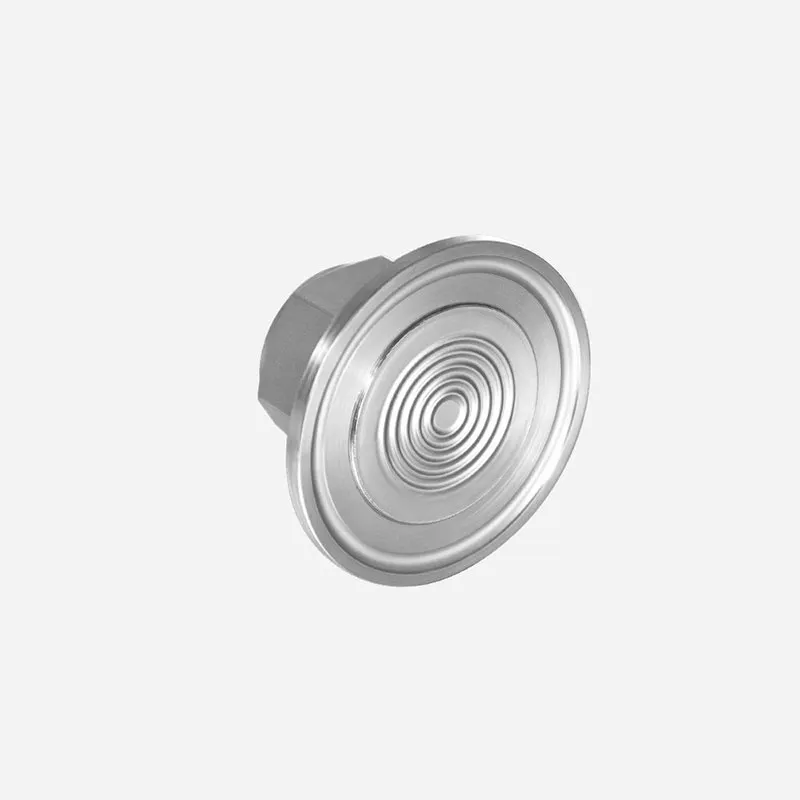

Sensore di pressione igienico

Sensore di pressione igienico

MPM280PD1

Φ32mm
0bar~1bar...35bar
Standard DN25 Clamp Connection
Hygienic pressure sensor MPM280PD1 is a piezoresistive silicon-type pressure cell.
Sensore di pressione sanitario

Sensore di pressione sanitario

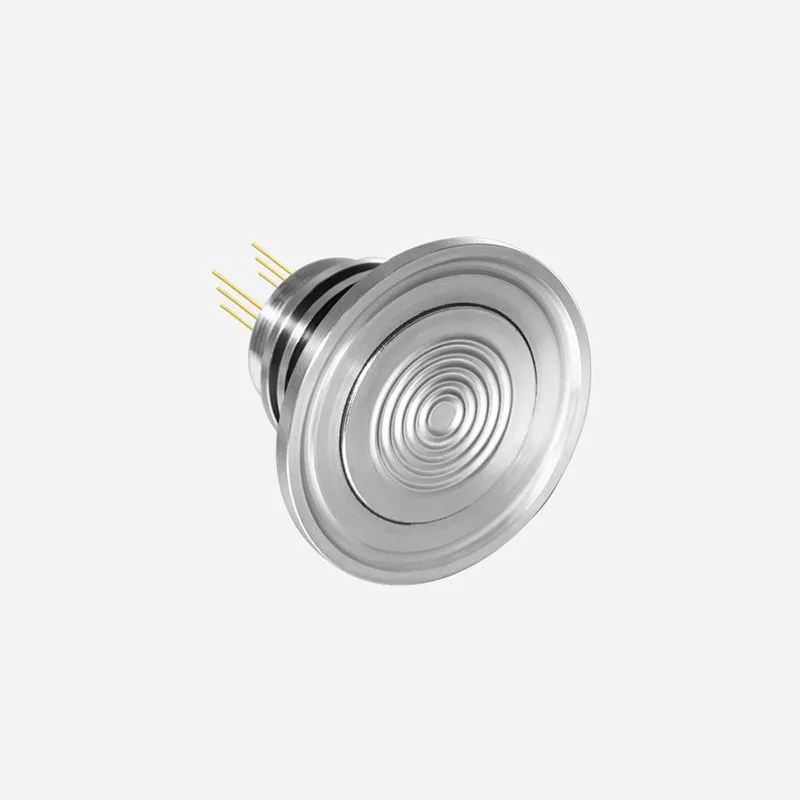

MPM280PD1S

Φ32mm
0bar~1bar…20bar
Standard DN25 Clamp Connection
Sanitary pressure sensor MPM280PD1S is designed for high-temperature sanitary media with the dissipation...

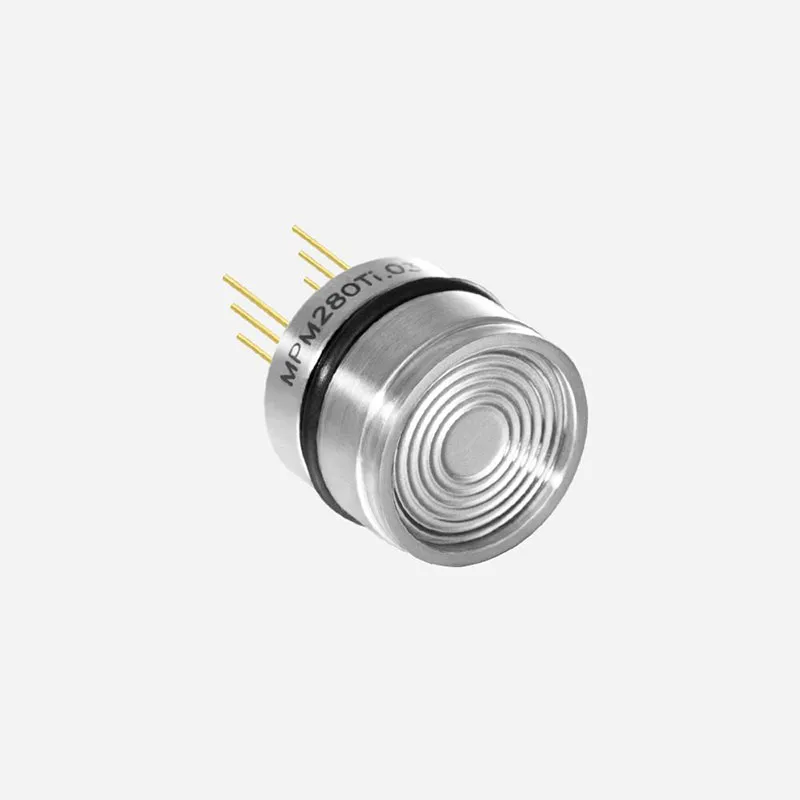

Sensore di pressione anticorrosione

Sensore di pressione anticorrosione

MPM280Ti

Φ19mm
-1bar...0bar~1bar…700bar
Titanium Diaphragm
Anti-corrosive MPM280Ti pressure sensor uses all titanium material in construction, TC4 housing...
Sensore di pressione anticorrosione

Sensore di pressione anticorrosione

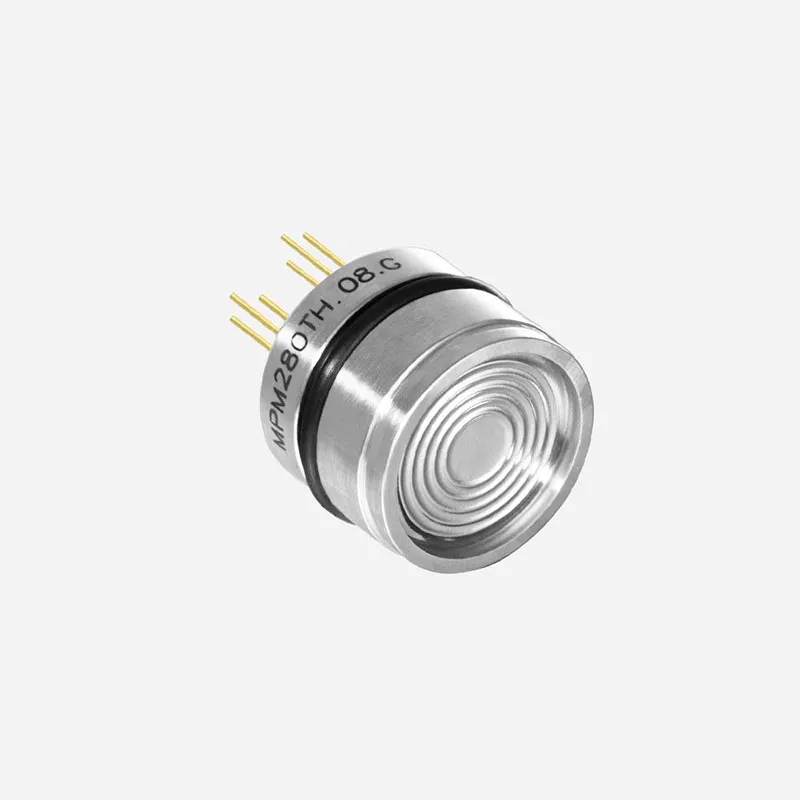

MPM280TH

Φ19mm
-1bar...0bar~1bar…700bar
Titanium Diaphragm
Anti-corrosive pressure sensor MPM280TH, the isolated diagram uses tantalum material and...
Sensore di pressione anticorrosione

Sensore di pressione anticorrosione

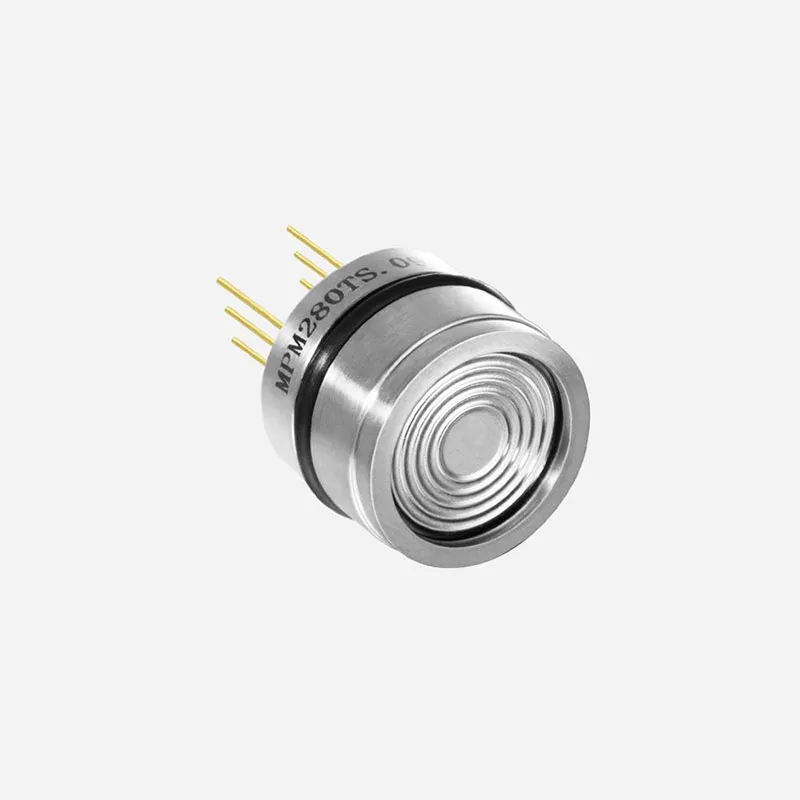

MPM280TS

Φ19mm
-1bar...0bar~1bar...350bar
Tantalum Diaphragm, SS316L
Anti-corrosive pressure sensor MPM280TS is 19 mm. The isolated diagram uses tantalum material...

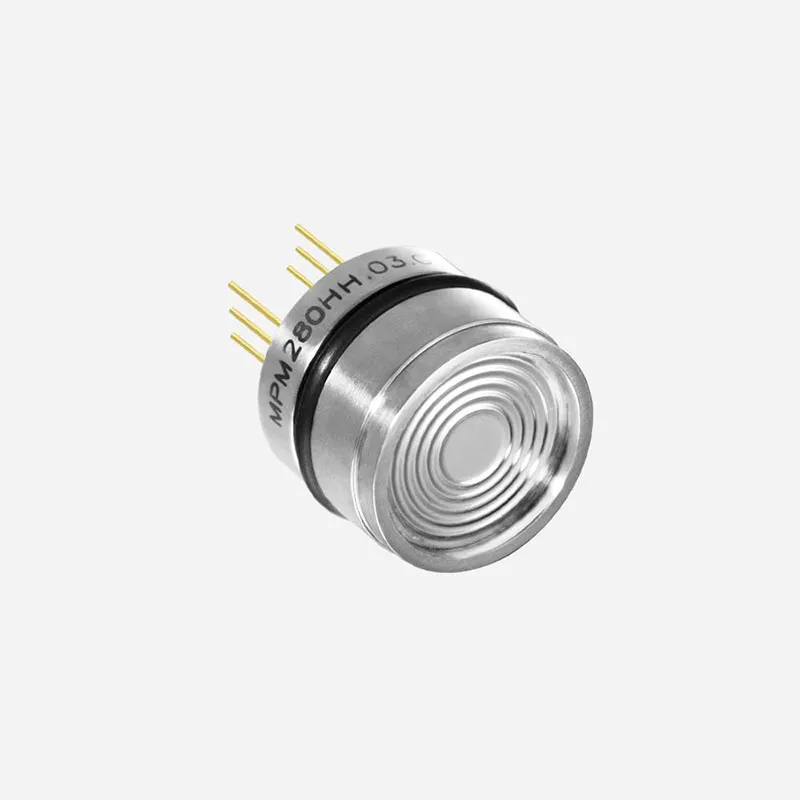

Sensore di pressione anticorrosione

Sensore di pressione anticorrosione

MPM280HH

Φ19mm
-1bar...0bar~1bar...350bar
Hastelloy C Diaphragm
Anti-corrosive pressure sensor MPM280HH uses all Hastelloy C material in construction.
Sensore di pressione a membrana piatta

Sensore di pressione a membrana piatta

MPM280F

Φ19x13.5mm
0bar~1bar...35bar
Flush Membrane
Flat membrane pressure sensor MPM280F is a pressure sensing element through the male thread.

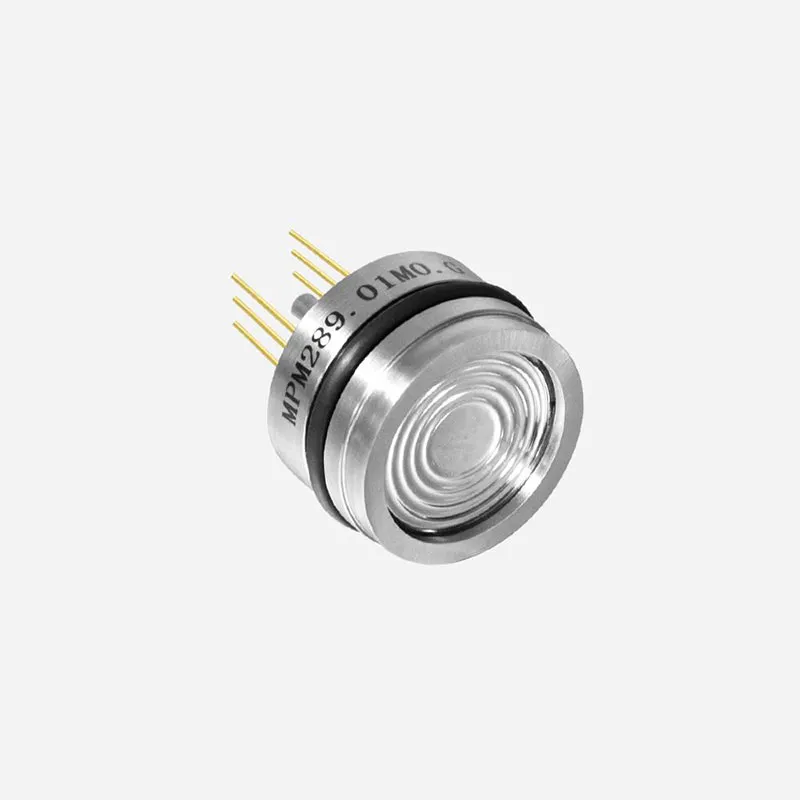

Sensore di pressione piezoresistivo

Sensore di pressione piezoresistivo

MPM289

Φ19×7mm
0bar~0.35bar…1000bar
-10~70℃ Compensated
Absolute pressure sensor MPM289 is a cost-effective type. It is Φ 19 mm standard OEM pressure...

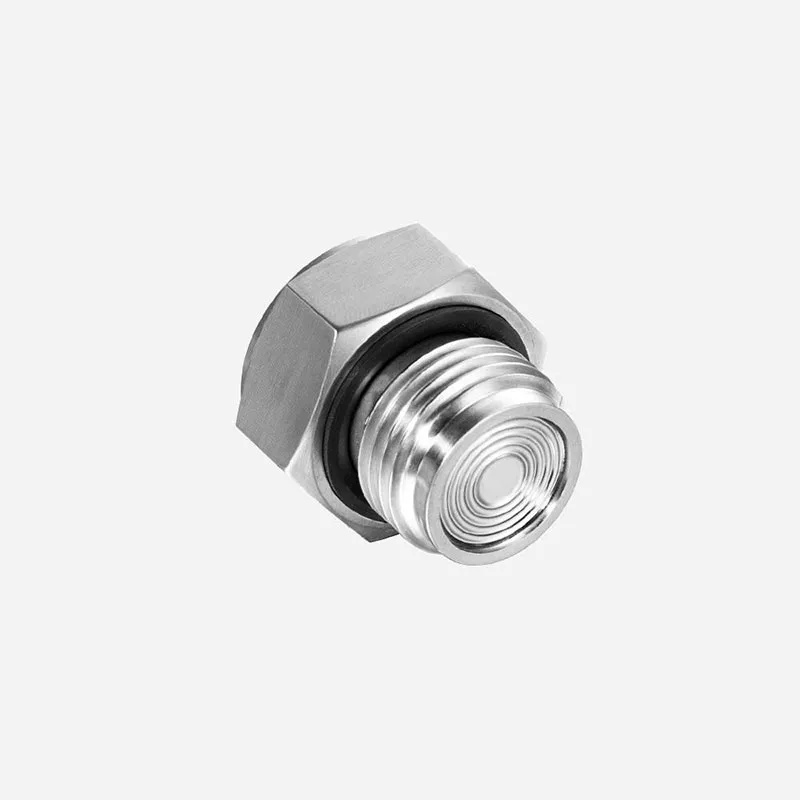

Sensore di pressione a membrana di lavaggio

Sensore di pressione a membrana di lavaggio

MPM280P

M20x1.5, R1/2, G1/2
0bar~1bar...35bar
Flush Diaphragm
Flush diaphragm pressure sensor MPM280P is a pressure sensing element through the male thread...

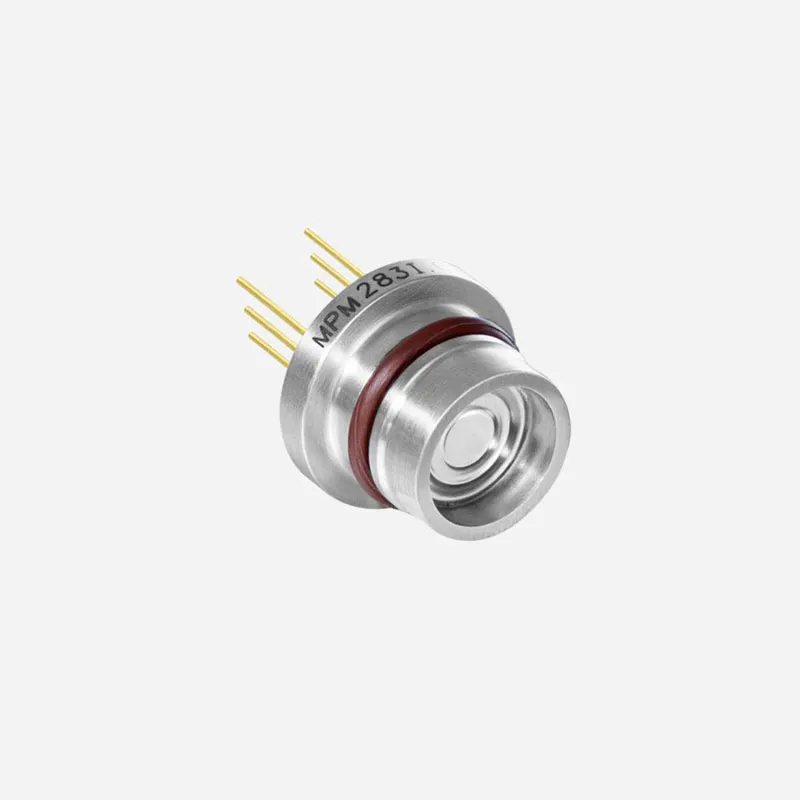

Sensore di pressione ad alta pressione

Sensore di pressione ad alta pressione

MPM283I

Φ16.8x12mm
0bar~1bar…1000bar
-10~80℃ Compensated
Piezoresistive pressure sensor MPM283I type has a welding ring applicable for the customer for...

Pressure Measurement in Food

The risk of contamination and easy cleaning in the operation exists in every food and beverage product in common. Each can, bottle, bag, or box that leaves your factory has to be wholesome, safe, and meet strict regulatory standards. Your reputation and profitability depend on it. In the whole operations, it is critical that processes shall run efficiently and all controls and procedures shall be in place. The accurate and reliable pressure sensing instrumentation will be needed whenever you are measuring levels in a fermentation tank, and discharge pressure from a diaphragm pump.

Micro Sensor is concentrating on sanitation like your application for more than 50 years. Our engineers strive to work out the most suitable sensing solutions to keep your production efficiency such as differentia pressure sensors and sanitary use pressure transmitters, etc. For this specialized industry, Micro Sensor also has the approved technology to make sure operations in food and beverage could run efficiently and productively.

Moreover, Micro Sensor has our own professional R&D team so we are capable to offer customers customized products with your unique requirements. If you have any suggestions, leave a comment below and our sales engineer will reply you within 24 hours.

Pressure Measurement in Oil and Gas

In oil and gas applications, pressure sensors are used widely which nearly involved all kinds of pressure types in the process of measuring, such as gauge, absolute, differential pressure, high pressure, micro differential pressure, etc. Our engineers are well-experienced in this application, they know the challenges and complexities of oil and gas processes clearly in real life, and put our technology into the applications to provide pressure measuring solutions for customers to ensure the process and product safety.

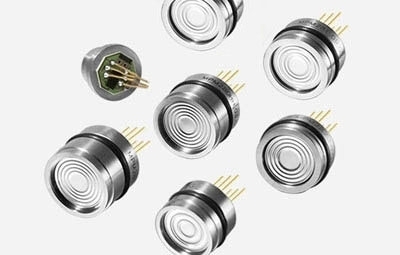

Production Processes

The main production processes of a pressure sensor is gluing - binding - diaphragm welding - oil filling - sealing - pressure impact- aging - temperature compensation - resistance adjustment - inspection and so on.

As far as the sensor itself is concerned, there is no absolute good or bad, but its production process level has a decisive influence on the performance.

Micro Sensor’s research and production of pressure sensors originated in the 1970s, and this production line can be said to have gone through a lot of vicissitudes, bearing half of the history of pressure sensors in China.

After decades of development, it has been an important advanced manufacturing space integrating digitalization, automation, and flexibilization, bearing the manufacturing tasks of our first products such as MPM280, MPM281, and MPM283.


Development History

The state of development of the pressure sensor is largely determined by the development of MEMS chips, which are essentially semiconductor sensors. In 1954, the great C.S. Smith discovered the piezoresistive effect of silicon and germanium. That is, when an external force is applied to a semiconductor material, its resistance will change significantly. Based on this principle, a strain resistor was glued to a metal film to convert the force signal into an electrical signal, thus enabling pressure measurement.



This is how piezoresistive pressure sensors were born. Subsequently, along with the silicon diffusion technology, each anisotropic corrosion technology and after the 80's micro-processing technology, gradually bring the pressure sensor to the micron level and the large volume development stage.
